OEM/ODM Backlit Panel Light Suppliers

Home / Our Products / Backlit Led Panel Light / Backlit Panel Light
Home / Our Products / Backlit Led Panel Light / Backlit Panel Light
product
Parameter

High-strength seamless aluminum frame

Fast heat dissipation

High transfer diffuser with around 88% transparency

Classic concave-convex design on the backside plate to increase stability

Per chip lumen up to 130lm/w

With CE flicker free driver

Dimension(mm)

300x300mm 300X600mm  600X600 mm 300X1200mm  600X1200mm

LED Type

SMD4014

Power Consumption

36w / 40w /48W/60W

Luminous efficiency

80LM/W-130LM/W

Input Voltage

AC220-240V

Heat sink

6063 aluminum

Driver

Philips/BOKE / Green So free flicker

CRI

>80

UGR

/

Beam Angle

110°

Power Factor

>0.9

Working Voltage

DC30-42V

CCT

3000-6500K

Working Temperature

-40°C – + 55°C

Storage Temperature

-25°C – + 55°C

Installation

Embedded, Suspended, Surface mounted, Spring clip

IP Rating

IP20

Warranty

3years-5years

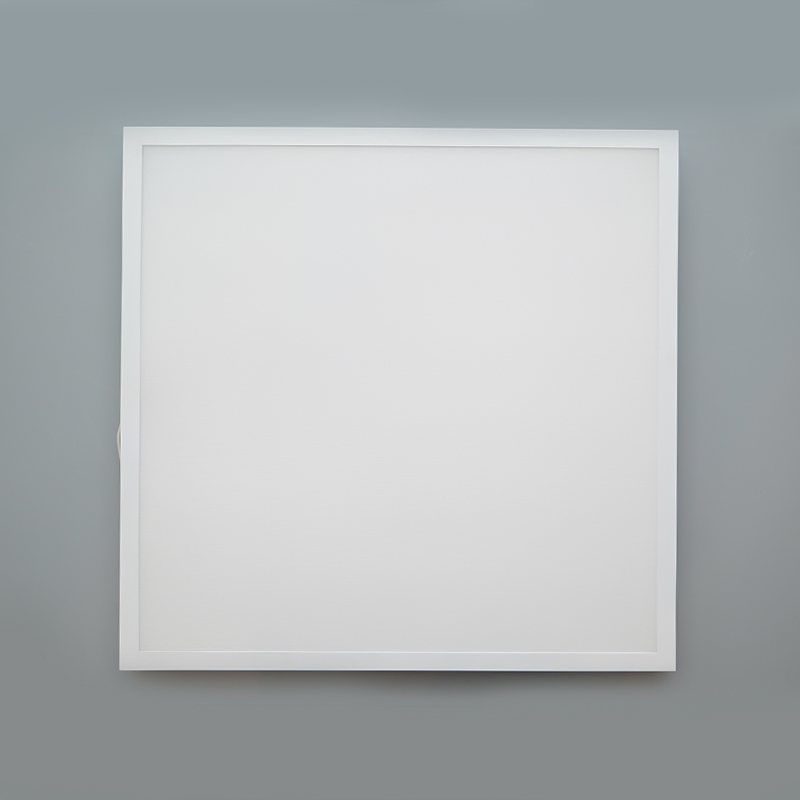

Backlit panel light Product Benefits

FANCO backlit panel light is a product that emits light from the bottom.This item has many advantages.1.High energy efficiency. The light emitted by the LED is directly irradiated through the diffuser, which improves the energy efficiency of the lamp system. 2.Best cost effective.The cost of the light guide plate is eliminated, so the cost of the lamp is reduced.3.The lamps are light. The weight of the lamp is reduced ,because the light guide plate is omitted.

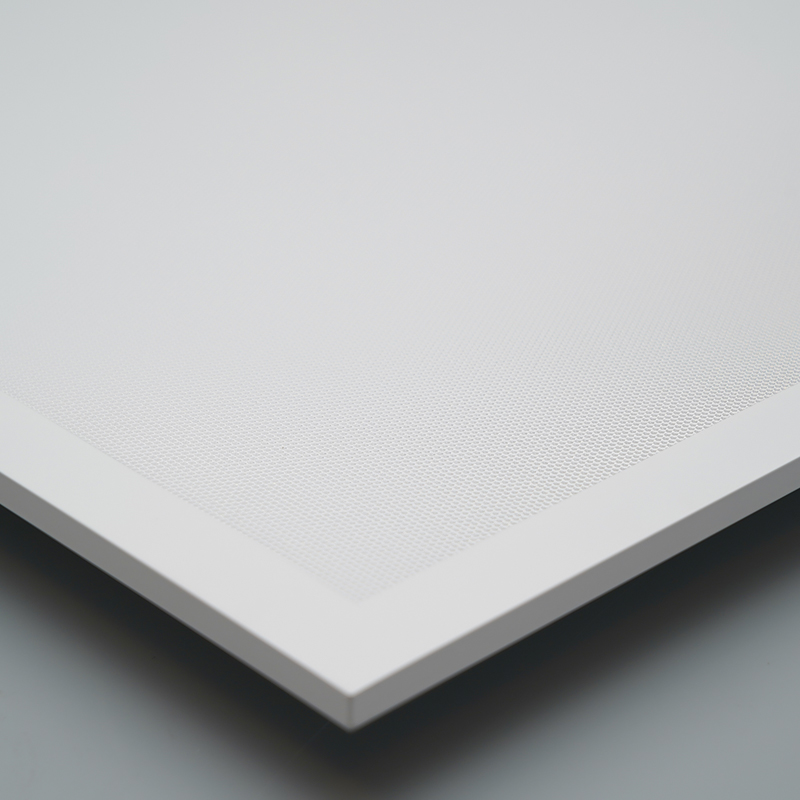

The light is only 11mm in thickness, it is made of 6063 aluminum frame, acrylic light guide plate,  diffusion plate, LED driver, back plate and SMD LEDs to deliver a smooth, flawless of illumination without visible bulbs or hot spots.This item panel light have a button to change the 3 step color temperature.

Get versatility in size and style with FANCO LED panel light, they are available in standard 300×300, 600×600, 1200×300 and 1200×600 sizes and are offered in recessed and surface mounted styles. Any other size and power can be Customized, Fanco  light is sure to provide greater flexibility, brighter light and bigger savings!





Aluminum heat sink advantage: integration, a truly seamless profile, with elegant outlook, good heat dissipation and cheap price. All these features make it the most ideal model to make led panel light.

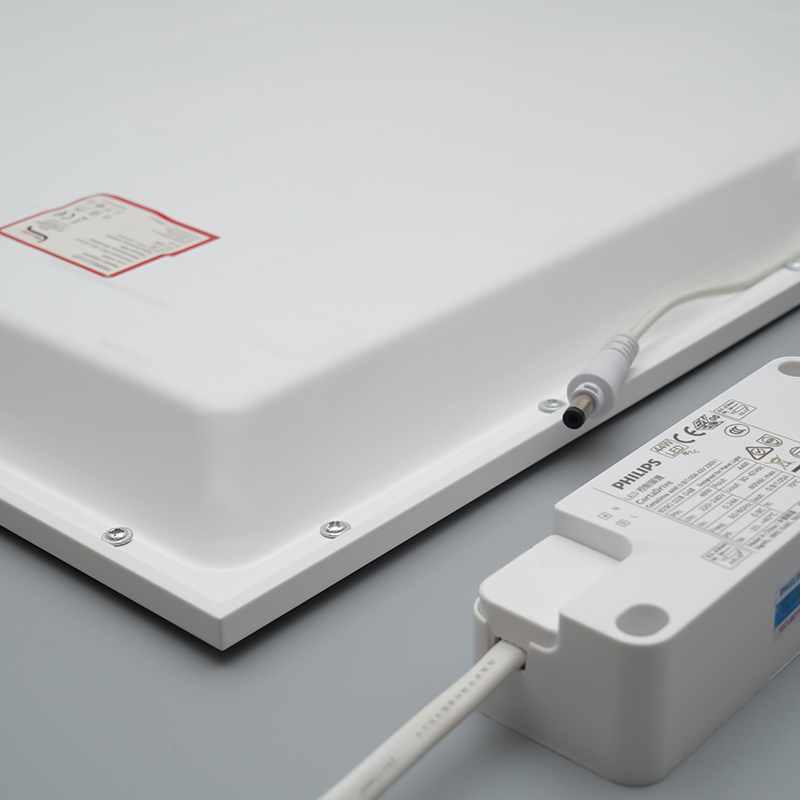

The backlit panel light with best driver

Driver plays a crucial role in the lifespan of led lighting, it’s very important that a driver is selected that is matched to the lamp and to be illuminated.

When selecting an LED driver, total LED power per function, this is the key to determining LED driver topology.

The ambient temperature of the electronic components, Supported diagnostics and safety compliance: such as thermal warning, thermal shutdown, open circuit, short, over-current protection, single LED failures, under voltage and overvoltage on the booster, LED temperature monitoring etc… These are important factors

For these reason, FANCO  alway use stable and trustable driver,such as Philips,BOKE,LIFUD,Green so and so on.



LED backlit panel light 60×60mm Photometer test







Offer smart lighting solution

FANCO will provide one-stop smart lighting solutions,Tuya,Dali,ZigBee,motion sensor ,microwave sensor, daylight harvest sensor and other dimming methods like 0-10V and DALI dimmable can all be customized.







Installation Method



Hanging wire Aluminum frame Spring clip

Applications

The LED backlit panel light is suitable for office, meeting room, school, hospital, shopping mall, indoor public places, etc.



Quality HIGHER
Service BETTER

Jiaxing Fanco Optoelectronic Co.. Ltd is famous Backlit Panel Light suppliers and Backlit Panel Light factory which was found in 2008. Company is located in Jiaxing, Zhejiang, China. With perfect hardware facilities, strong team for research and sales, FANCO persisst on the principle: Integrity Honest Trust. Let' s grow up together and create more value.

  • 1
  • 2
  • 3
  • 4

Benefits of Choosing Us

  • 1

    Stable quality

    The company was founded in 2012, and is engaged in the lighting industry for 9 years. And we’ve sold about 5,000,000pcs panel lamps all over the world.

  • 2

    Meet Different Needs

    From 2012 to 2021, we serve clients from over 30 countries, and are able to meet the needs from different countries and regions.

  • 3

    Cost-Effective

    Automated production lines and rigorous testing procedures ensure good quality of our products and the reduction of production costs.

  • 4

    Complete Inspection System

    Every single lamp is 100% checked and tested. Power on and off test, colorimetric test, luminous flux and electrical test provide guarantee of quality.

  • 5

    Fast Delivery

    We can produce 2,000-3,000pcs panel lamps per day.

  • 6

    Professional Sales Team

    We have professional training for our sales team every three month.
